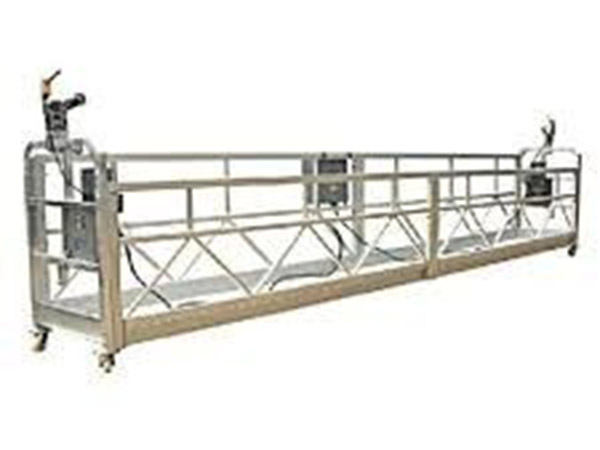

Suspended Platform

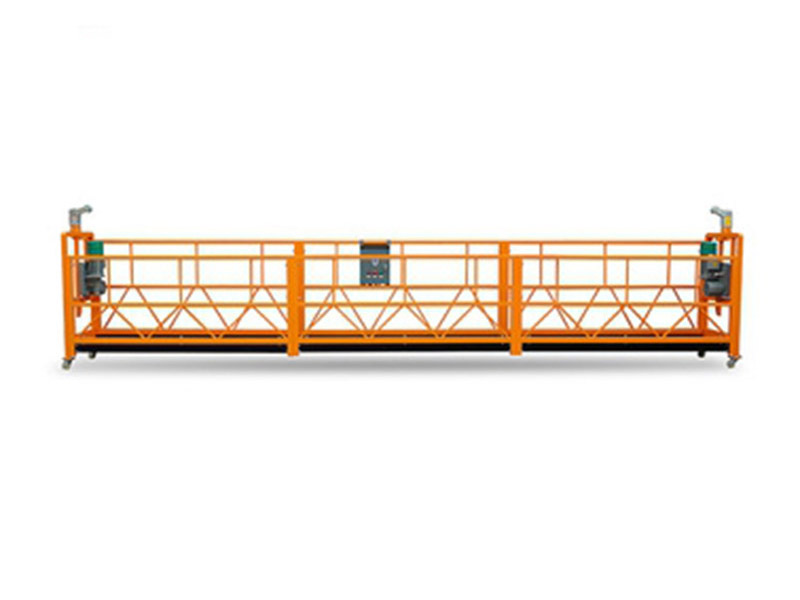

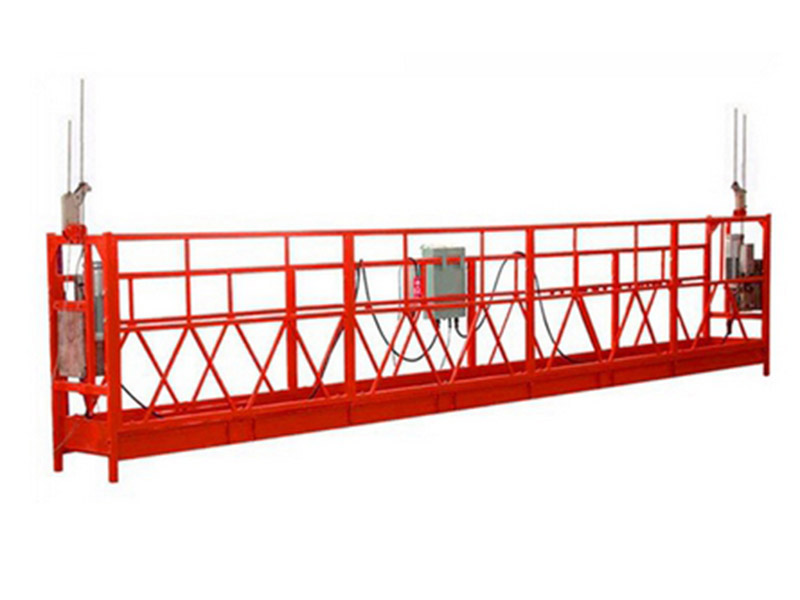

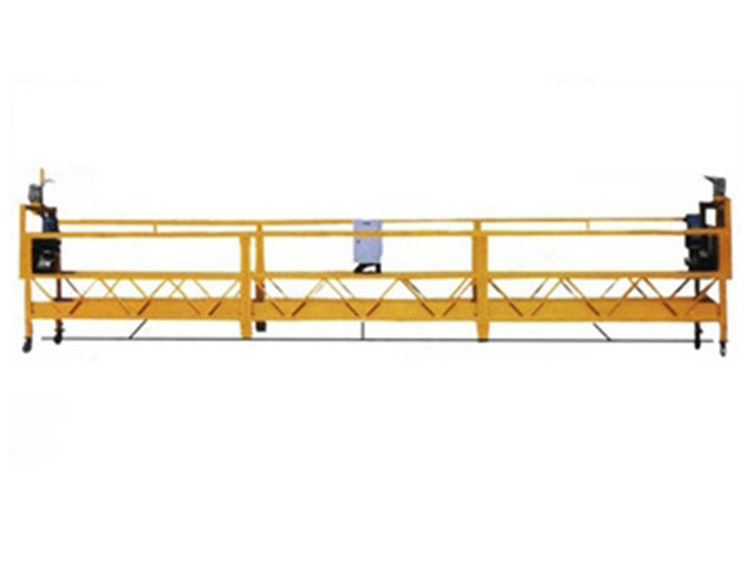

(1)HKZLP Series Spraying painting steel Suspended TECHNICAL PARAMETERS:
| HSZLP500 steel Suspended Platform Working Platform 2.5m+2.5m=5m | ||
| Platfrom Dimersion(L*W*H)mm |
5000*690*1180 |
 |
| Rated Capacity(kg) |
500 |
|
| Lifting Speed(m/min) |
9.3 |
|
| Motor Power(kw) |
2*1.1 |
|
| Braking Torque(Nm) |
15 |
|
| Lifting Height(m) |
50-200(mix-max) |
|
| Total Weight(kg) |
1,570 |
|
| Cube(m3) |
3 |
|
| HSZLP630 steel Suspended Platform Working Platform 2m+2m+2m=6m | ||
|
Platfrom Dimersion(L*W*H)mm |
6000*690*1180 |
 |
|
Rated Capacity(kg) |
630 |
|
|
Lifting Speed(m/min) |
9.3 |
|
|
Motor Power(kw) |
2*1.5 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,850 |
|
|
Cube(m3) |
3.2 |
|
|
HSZLP800 steel Suspended Platform Working Platform 2.5m+2.5m+2.5m=7.5m |
||
|
Platfrom Dimersion(L*W*H)mm |
7500*690*1180 |
 |
|
Rated Capacity(kg) |
800 |
|
|
Lifting Speed(m/min) |
8.2 |
|
|
Motor Power(kw) |
2*1.8 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
2,000 |
|
|
Cube(m3) |
3.5 |
|

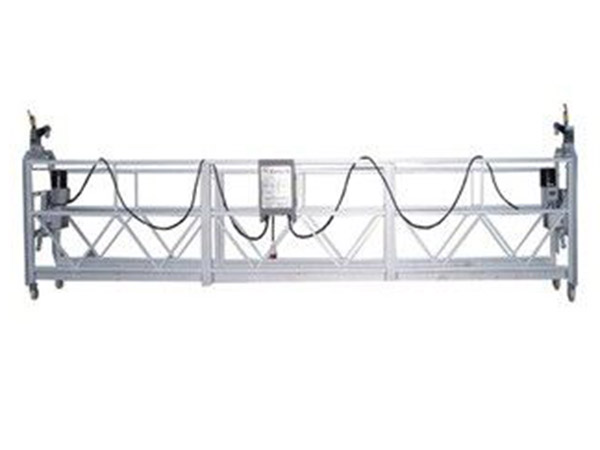

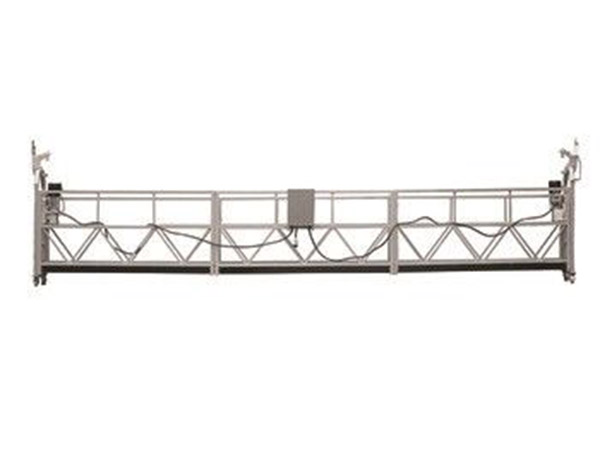

(2)ZLP Series Galvanized Suspended Platform
|
HGZLP500 Galvanized Suspended Platform Working Platform 2m+2m+2m=6m |
||
|
Platfrom Dimersion(L*W*H)mm |
5000*690*1180 |
 |
|
Rated Capacity(kg) |
500 |
|
|
Lifting Speed(m/min) |
9.3 |
|
|
Motor Power(kw) |
2*1.1 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,570 |
|
|
Cube(m3) |
3 |
|
|
HGZLP630 Galvanized Suspended Platform Working Platform 2m+2m+2m=6m |
||
|
Platfrom Dimersion(L*W*H)mm |
6000*690*1180 |
 |
|
Rated Capacity(kg) |
630 |
|
|
Lifting Speed(m/min) |
9.3 |
|
|
Motor Power(kw) |
2*1.5 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,850 |
|
|
Cube(m3) |
3.2 |
|
|
HGZLP800 GalvanizedSuspended Platform Working Platform 2.5m+2.5m+2.5m=7.5m |
||
|
Platfrom Dimersion(L*W*H)mm |
7500*690*1180 |
 |
|
Rated Capacity(kg) |
800 |
|
|
Lifting Speed(m/min) |
8.2 |
|
|
Motor Power(kw) |
2*1.8 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
2,000 |
|
|
Cube(m3) |
3.5 |
|

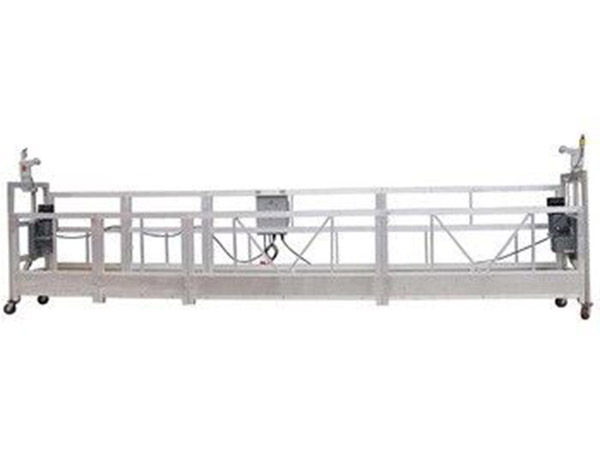

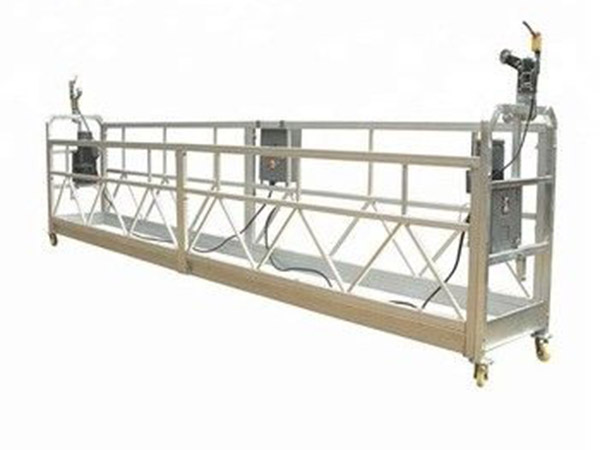

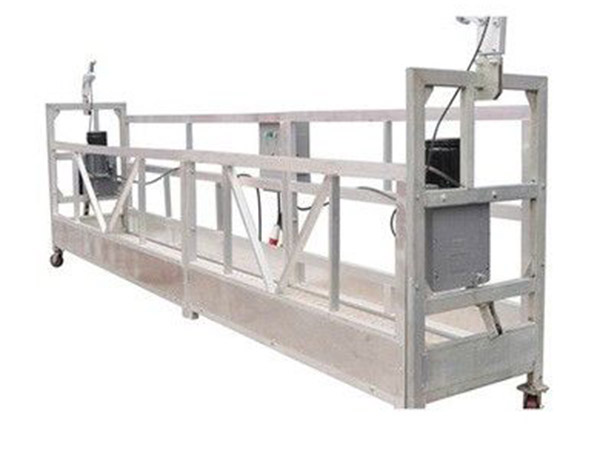

(3)ZLP Series Aluminium Suspended Platform As Following
|
HAZLP500 Aluminium Suspended Platform Working Platform 2m+2m+2m=6m |
||
|
Platfrom Dimersion(L*W*H)mm |
5000*690*1180 |
 |
|
Rated Capacity(kg) |
500 |
|
|
Lifting Speed(m/min) |
9.3 |
|
|
Motor Power(kw) |
2*1.1 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,450 |
|
|
Cube(m3) |
3 |
|
|
HAZLP630 Aluminium Suspended Platform Working Platform 2m+2m+2m=6m |
||
|
Platfrom Dimersion(L*W*H)mm |
6000*690*1180 |
|
|
Rated Capacity(kg) |
630 |
|
|
Lifting Speed(m/min) |
9.3 |
|
|
Motor Power(kw) |
2*1.5 |
|
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,650 |
|
|
Cube(m3) |
3.2 |
|
|
HAZLP630 Aluminium Suspended Platform Working Platform 2m+2m+2m=6m |
||
|
Platfrom Dimersion(L*W*H)mm |
7500*690*1180 |
|
|
Rated Capacity(kg) |
800 | |
|
Lifting Speed(m/min) |
8.2 | |
|
Motor Power(kw) |
2*1.8 | |
|
Braking Torque(Nm) |
15 |
|
|
Lifting Height(m) |
50-200(mix-max) |
|
|
Total Weight(kg) |
1,750 |
|
|
Cube(m3) |
3.2 |
|
Hoist for Suspended Platfrom
| Model |
LTD 6.3 |
LTD 80A |
LTD 10 |
| Rated Lifting Force |
6.3KN |
8KN |
10KN |
| Lifting Speed |
9.3m/min |
8.3±0.5m/min |
8.3±0.5m/min |
| Motor Power |
1.5WK |
1.8KW |
2.2WK |
| Diameter Of Wire Rope |
￠8.3mm |
￠8.6&9.1mm |
￠9.1mm |
| Seif Weight |
48KG |
52KG |
80KG |
