• Managed 24*1000Base T(X) + 4*1000 /10000Base SFP fiber optic port Ethernet Switch

Managed 24*1000Base T(X) + 4*1000 /10000Base SFP fiber optic port Ethernet Switch

Short Description:

24* 10/100/1000Base T(X) Ethernet ports and 4*1000Base-FX or 10GE SFP fiber optic ports.
Support Ethernet redundant Ring protocol( recovery time≤20ms)
Wire speed forwarding capability of all ports make sure of non-blocking message forwarding.
Support 802.1x authentication, VLAN, and broadcast storm suppression.
Support IEEE/802.3x full duplex flow control and Backpressure half duplex flow control.
Loop detection and Port+ IP+MAC binding.
Port traffic monitoring and fault event alarming
Support WEB visual interface, support SNMP management.
Automatic MDI/MDI-X crossover for plug-and-play
Overload protection and power reverse polarity protection.
Full-loaded operating temperature range -20 to 70℃.
19” 1U Rack Mount installation


Product Detail

Product Tags

Basic Info

Model NO. MNB28G-24E-4XG
Transport Package Carton
Origin Jiangsu,China

Product Description

HENGSION managed MNB28G-24E-4XG provides 4*1000Base-TX or 10000Base-TX fiber optic ports and 24*10/100/1000BaseT(X) Ethernet ports. No fan, low power consumption design; Support Ethernet redundant Ring protocol, with complete security and QoS policies; Support VLAN division, port mirroring, and port rate limiting; Support broadcast storm suppression, flow control, and centralized management and configuration by WEB,CLI,SNMP.

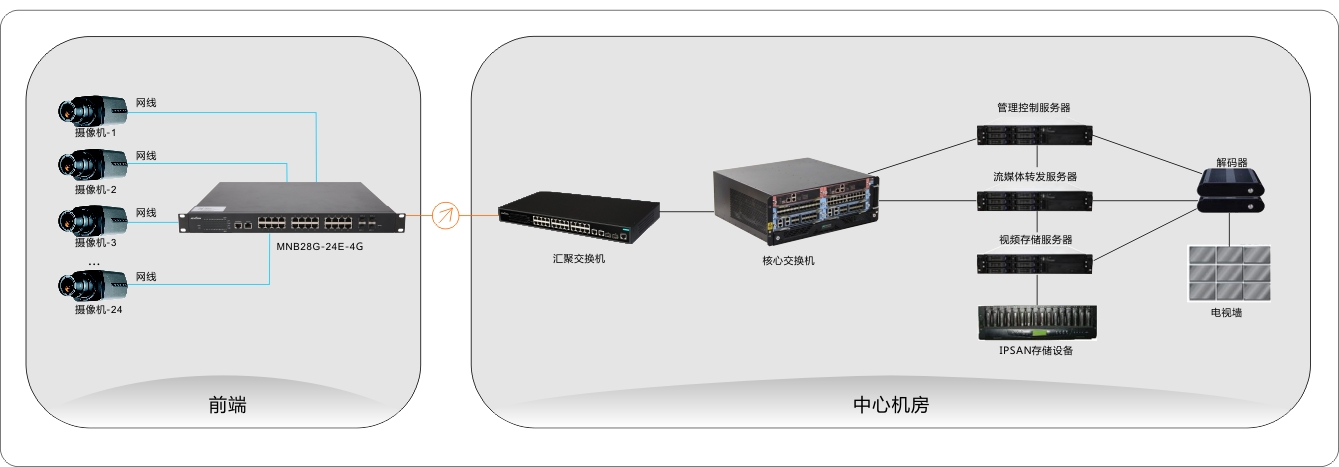

MNB28G Series has a wealth of operational features which can meet user’s networking requirements of multi-service integration, security, scalability and manageability. Its wide operating temperature range and port surge protection design are ideal for application in large flow real-time outdoor environment, and are widely used for occasions including enterprise, intelligent building, cafe, community access or gathering etc., and for industries like finance, education and government etc.

Technology
Standards IEEE 802.3,802.3u,802.3x, 802.3ab, 802.3z; IEEE802.1Q,802.1p,802.1D,802.1w,802.1s,802.1X,802.1ab
Protocols Ring, MSTP, IGMP Snooping, GMRP,VLAN,PVLAN, Telnet, HTTP, HTTPS, RMON,SNMPv1/v2/v3,LLDP,SNTP,DHCP server,SSH,SSL,ACL,FTP,ARP,QoS
Interface
Gigabit Ethernet port 10/100/1000Base-TX auto-adaptive RJ45
Gigabit Fiber port 1000Base-X SFP fiber optic port
Console port RS232 in RJ45 connector with console cable
10GE Fiber port 10GE SFP fiber optic port
Power port 90-264VAC @ 12VDC Power plug
Switching Features
Processing Type Store & forward, wire speed switching
Switching bandwidth 192Gbps
Packet forwarding speed 96Mpps
MAC Address 16K
Buffer Memory 1.5MB
Priority Queue 4
VLAN number 4K
VLAN ID 1-4096
Multicast groups 256
Software Features
VLAN 802.1Q,Vlan(4K), Port-based VLAN, Q-in-Q
Storm Suppression Broadcast, multicast, and  unknown unicast  storm suppression
Flow control IEEE802.3X negotiation, CAR function, rate limiting step 64K
Multicast protocol IGMPv1/2/3 Snooping
Port Management Support port mirroring, port isolation, port trunking
DHCP Management Support DHCP Snooping, option 82
QoS (Quality of Service) 802.1p; Support port default priority tags, at least 4 different priority queues per port
Security features MAC address filtering, dynamic or static MAC address learning, Loop detection and Port+ IP+MAC binding
Traffic Management Port traffic monitoring and fault event alarming
Management SNMP v1/v2/v3, CLI,WEB
Management Access Support Console, Telnet
System Maintenance RMON,PDP Discovery Protocol(CDP compliant),AST
File transfer Support Log output, configuration file backup and input
LED Indicator for
Power, Device running status, Ethernet port connection & running status, Fiber port connection & running status
Power
Input  Voltage Range 90-264VAC
Idle Consumption 1.04A@12VDC(Max)
Full -load Consumption 1.86A@12VDC(Max)
Connection Power plug
Protection Overload Current Protection
Mechanical
Casing 19” 1U  metal casing
Protection grade IP30
Dimension(L*W*H) 440*350*44mm
Installation 1U Rack Mount
Weight 3.125Kg
Environmental
Operating Temperature -20℃~+70℃
Storage Temperature -40℃~+85℃
Relative Humidity 5~95%,non-condensing
Warranty
Warranty Period 2 years
