• Managed 4*1000Base T(X) + 2*1000Base SFP port Industrial Ethernet Switch

Managed 4*1000Base T(X) + 2*1000Base SFP port Industrial Ethernet Switch

Short Description:

4* 1000Base T(X) ports + 2 Gigabit SFP ports

Wire speed forwarding capability of all ports make sure of non-blocking message forwarding.

Automatic MDI/MDI-X crossover for plug-and-play

Support redundant Ring protocol

Support 802.1x authentication, VLAN, and broadcast storm suppression.

Loop detection and Port+ IP+MAC binding.

Port traffic monitoring and fault event alarming

Support WEB visual interface, support SNMP management.

Support full-loaded operating temperature range -40 to 85℃.

No fan, low power consumption design.

EMC-4

IP40 protection


Product Detail

Product Tags

Basic Info

Model NO. MIB12G-4EG-2G-MIR
Transport Package Carton
Origin Jiangsu,China

Product Description

HENGSION Managed MIB12G-4EG-2G-MIR provides 2* Gigabit SFP fiber optic ports and 4*10/100/1000BaseT(X) Ethernet ports. Support VLAN division, port mirroring, and port rate limiting; Support broadcast storm suppression, flow control, and centralized management and configuration by WEB, CLI and SNMP. No fan, low power consumption design; Din rail corrugated metal casing, meet IP40 protection grade; Dual redundant power input; Comply with CE, FCC and ROHS standards.

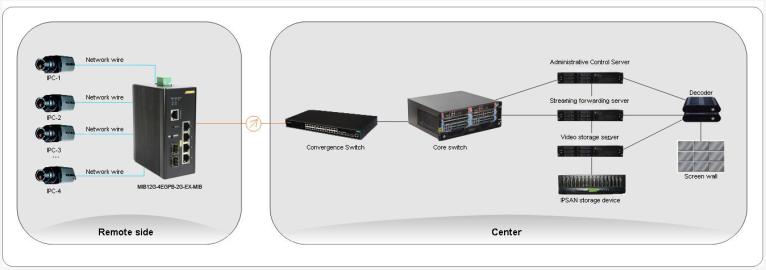

MIB12G series effectively reduced the cabling cost and labor costs. The wide operating temperature range and port surge protection design are ideal for application in large flow real-time outdoor environment, are widely used in industrial automation control and surveillance occasions like campus, community, rail traffic, electric power control and so on.

Technology
Standards IEEE 802.3,802.3u,802.3x, 802.3ab, 802.3z; IEEE802.1Q,802.1p,802.1D,802.1w,802.1s,802.1X,802.1a.
Protocols STP/RSTP/MSTP, IGMP Snooping, GMRP,VLAN, Telnet, HTTP, HTTPS, RMON,SNMPv1/v2/v3, LLDP,SNTP, SSH ,ACL,FTP, QoS
Interface
Gigabit Ethernet port 10/100/1000 Base-T(X)  auto-adaptive RJ45
Gigabit Fiber port 1000Base-X SFP port
Console port RJ45
Power supply port 5.08 industrial terminal
Switching Features
Processing Type Store & forward, wire speed switching
Switching bandwidth 50Gbps
Packet forwarding speed 15Mpps
MAC Address 4K
Buffer Memory 512KB
Priority Queue 4
VLAN number 4K
VLAN ID 1-4096
Multicast groups 256
Software Features
VLAN 802.1Q,Vlan(4K), Port-based VLAN
Storm Suppression Broadcast, multicast, unknown unicast  storm suppression
Flow control IEEE802.3X negotiation, CAR function, rate limiting step 64K
Multicast protocol IGMP- Snooping
Port Management Support port mirroring, port isolation, port trunking
DHCP Management Support DHCP Snooping, option 82
QoS (Quality of Service) 802.1p; Support port default priority tags, at least 4 different priority queues per port
Security features MAC address filtering, dynamic or static MAC address learning, Loop detection and Port+ MAC binding,802.1x port authentication (Radius, Local)
Traffic Management Port traffic monitoring and fault event alarming
Management SNMP v1/v2/v3, CLI, WEB
Management Access Support Console, Telnet, SSH
System Maintenance Set system IP, restore factory settings, restart equipment, upgrade equipment
File transfer Support Log output, configuration file backup and input
LED Indicator for
Power, Ethernet port , Fiber port connection & running status
Power
Input Voltage Range 12-57VDC redundant input
Connection 5.08mm industrial terminal
Protection Overload Current Protection; Redundancy protection
Mechanical
Casing Strengthened corrugated metal casing

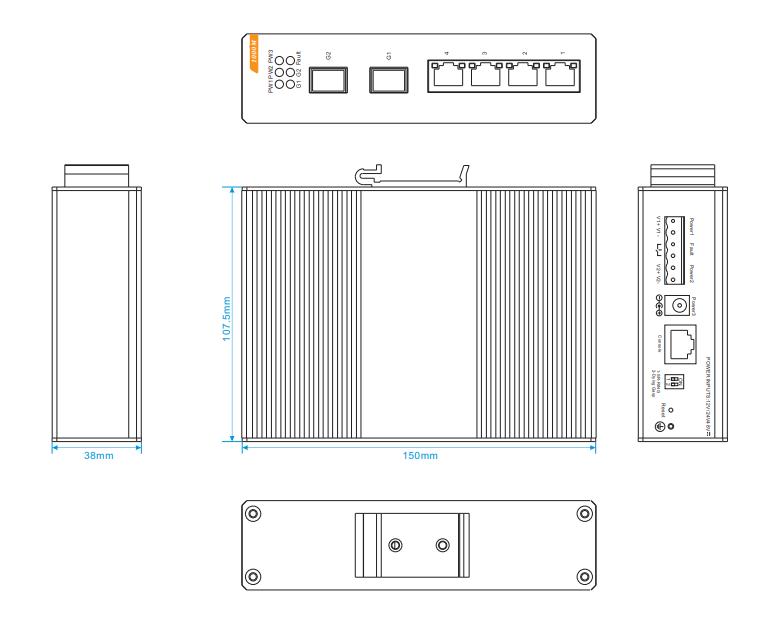

Dimension(L*W*H) 150mm*107.5mm*38mm
Installation Din Rail
Weight 0.8KG (without power supply)
Environmental
Operating Temperature -40℃~+85℃
Storage Temperature -45℃~+85℃
Relative Humidity 5~95%,non-condensing
Industry Approvals
EMI FCC Part 15,CISPR(EN55022) class A




EMS

EN61000-4-2(ESD), Level 4
EN61000-4-3(RS),Level 3
EN61000-4-4(EFT),Level 4
EN61000-4-5(Surge),Level 4
EN61000-4-6(CS),Level 3
EN61000-4-8,Level 5
Shock IEC 60068-2-27
Free Fall IEC 60068-2-32
Vibration IEC 60068-2-6
Warranty
Warranty Period 5 years for Ethernet swtich
